BITS - Soft inputs and constant bits
The BITS block contains 4 soft values A..D. Each of these soft values can be set to 0 or 1 by using the SET_A..SET_D parameters.
Fields
Name |
Type |
Description |
|---|---|---|
A |
param bit |
The value that output A should take |
B |
param bit |
The value that output B should take |
C |
param bit |
The value that output C should take |
D |
param bit |
The value that output D should take |
OUTA |
bit_out |
The value of A on the bit bus |
OUTB |
bit_out |
The value of B on the bit bus |
OUTC |
bit_out |
The value of C on the bit bus |
OUTD |
bit_out |
The value of D on the bit bus |

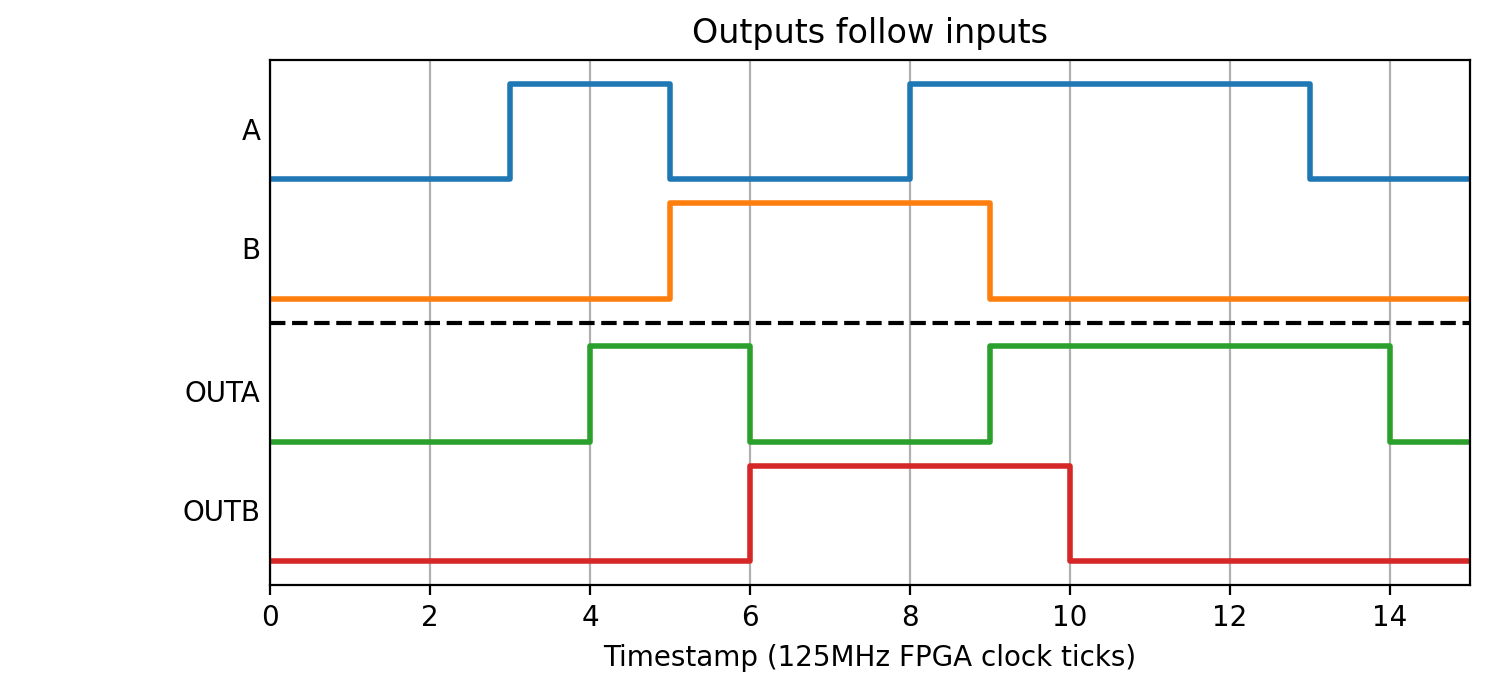

Outputs follow parameters
This example shows how the values on the bit bus follow the parameter values after a 1 clock tick propagation delay
(Source code, png, hires.png, pdf)
