QDEC - Quadrature Decoder

The QDEC block handles the encoder Decoding

Fields

Name	Type	Description
LINKUP_INCR	param bit	link up incremental coder signal
A	bit_mux	Quadrature A
B	bit_mux	Quadrature B
Z	bit_mux	Z index channel
RST_ON_Z	param bit	Zero position on Z rising edge
SETP	write int	Set point
HOMED	read bit	Quadrature homed status
OUT	pos_out	Output position

Counting

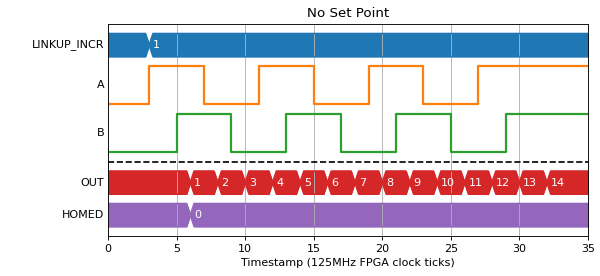

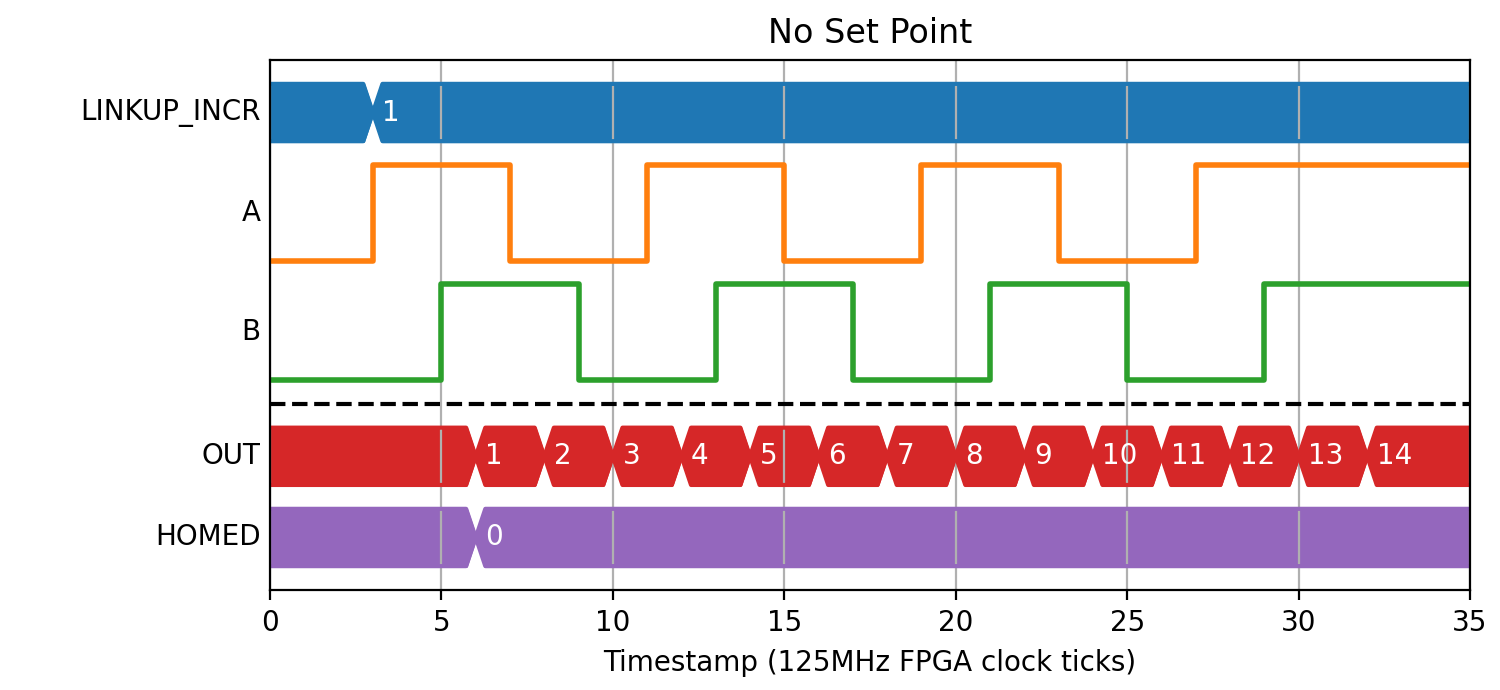

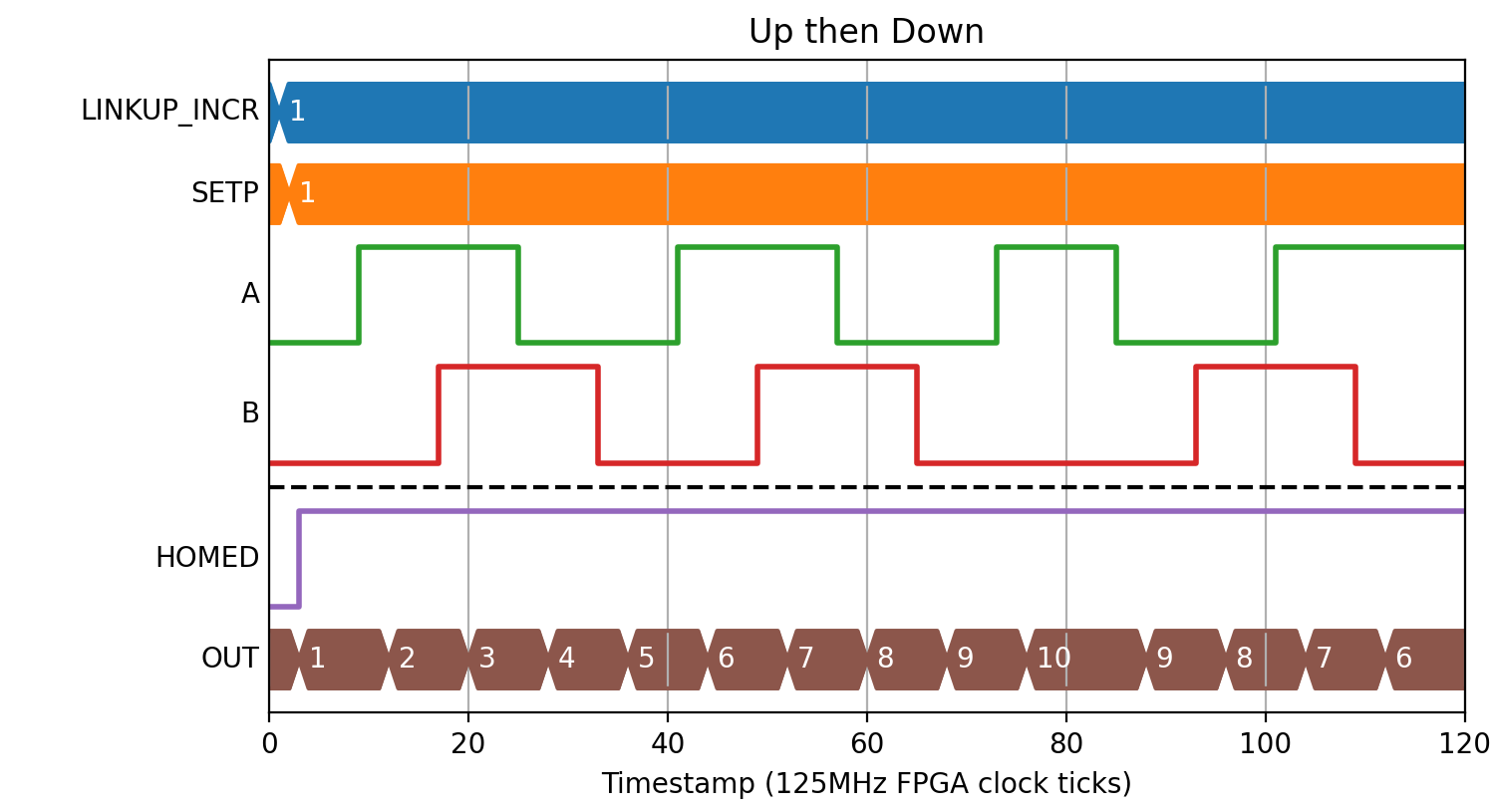

The quadrature decoder counts, incrementing at each rising or falling edge of the sequence. If the sequence is reversed the count will decrease at each edge. The initial value is set to the value of the SETP input.

(Source code, png, hires.png, pdf)

(Source code, png, hires.png, pdf)

Resetting

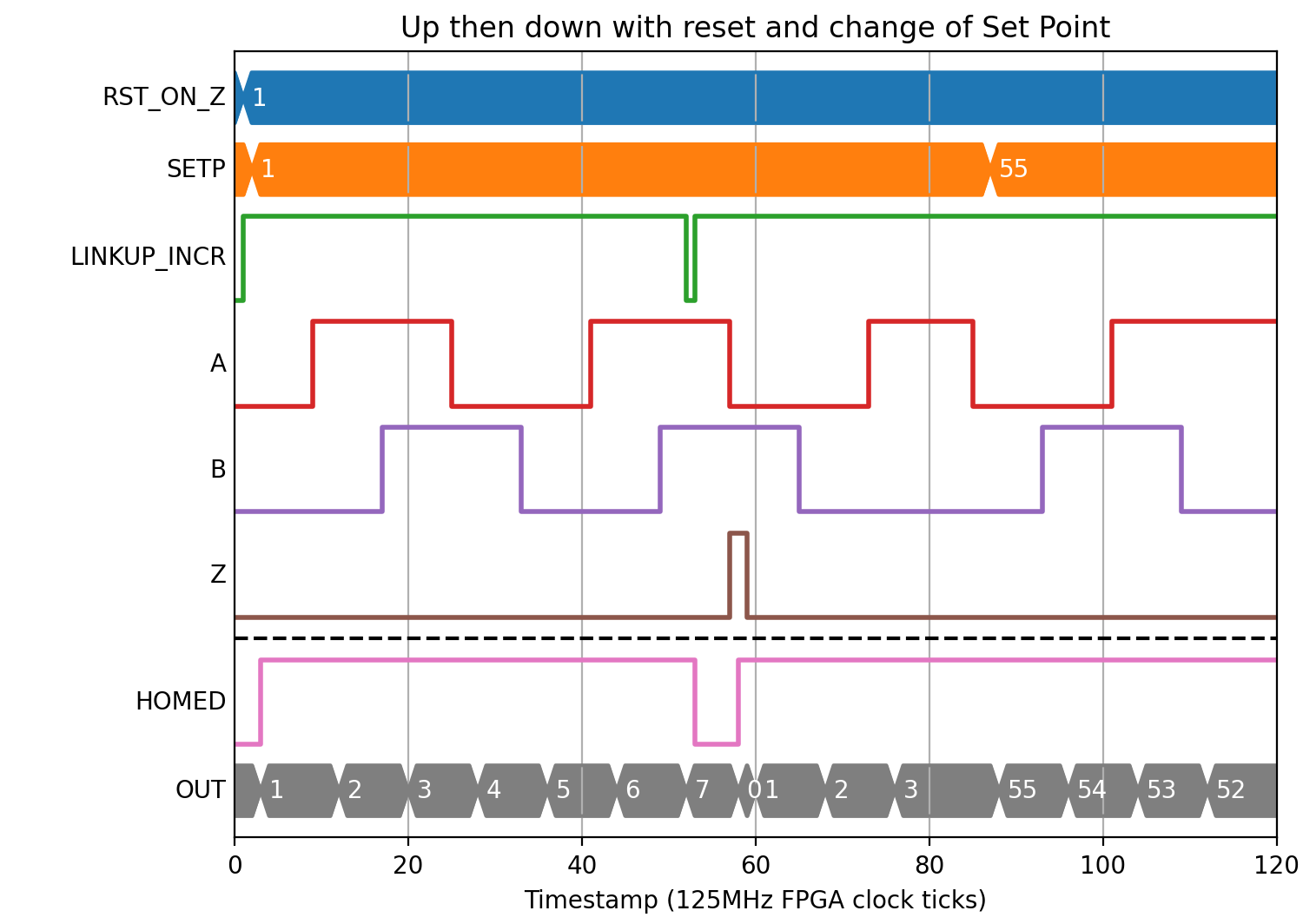

Whilst counting, it can be reset to ‘0’ on while the Z input is high, provided that this functionality is enabled by setting the RST_ON_Z input to ‘1’. If the SETP input is changed the count value changes to the new value.

(Source code, png, hires.png, pdf)

Limitations

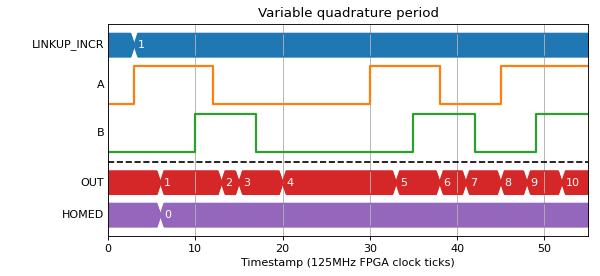

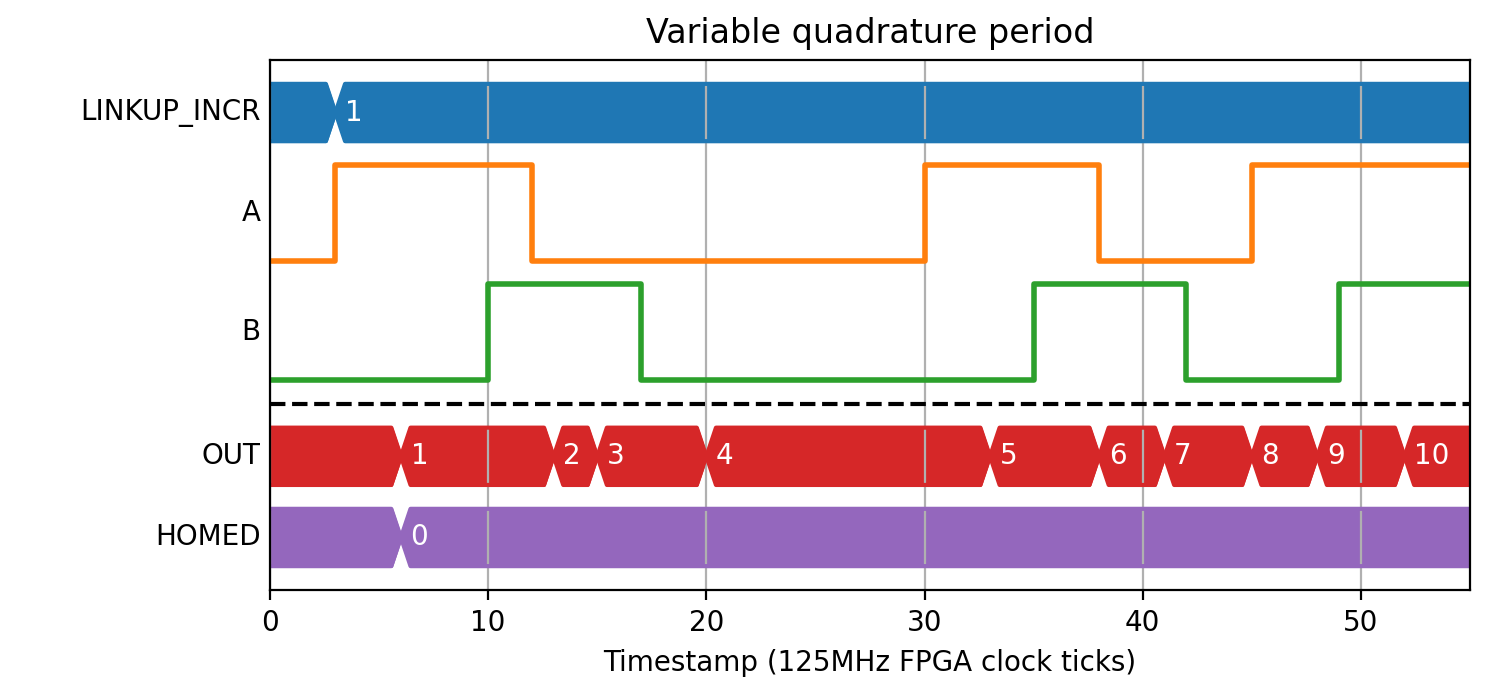

The block can continue to count when there is not a constant period between the pulses.

(Source code, png, hires.png, pdf)

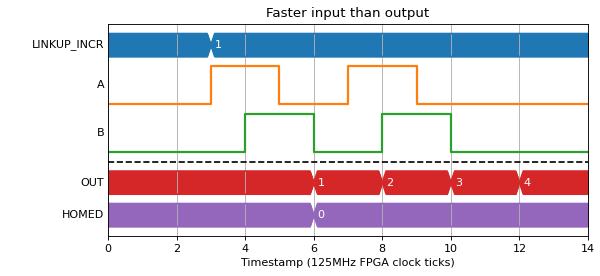

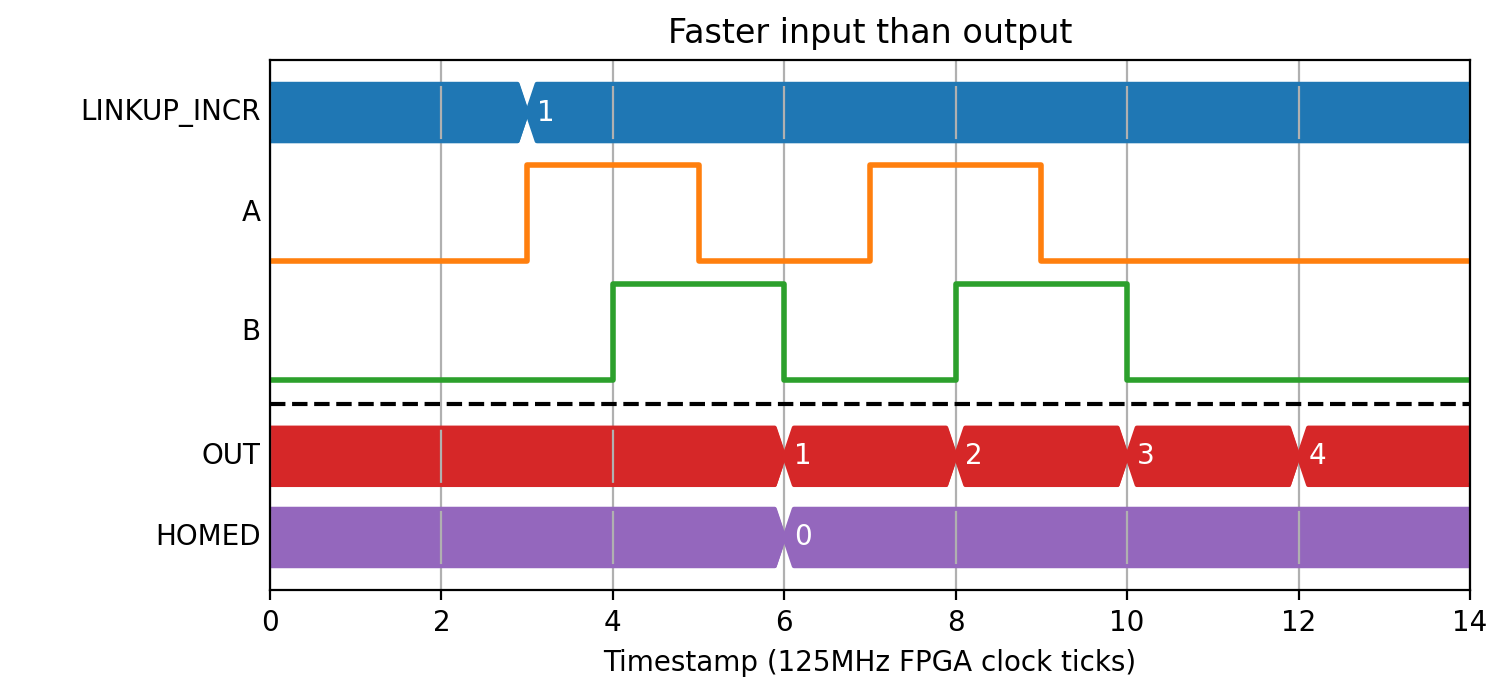

The output takes three clock pulses to update. If the inputs are changing faster than this, inputs can be lost.

(Source code, png, hires.png, pdf)
