DIV - Pulse divider

A DIV block is a 32-bit pulse divider that can divide a pulse train between two outputs. It has an internal counter that counts from 0 to DIVISOR-1. On each rising edge of INP, if counter = DIVISOR-1, then it is set to 0 and the pulse is sent to OUTD, otherwise it is sent to OUTN. Change in any parameter causes the block to be reset.

Fields

Name	Type	Description
ENABLE	bit_mux	Reset on falling edge, enable on rising
INP	bit_mux	Input pulse train
DIVISOR	param	Divisor value
FIRST_PULSE	param enum	Where to send first pulse 0 OutN 1 OutD
OUTD	bit_out	Divided pulse output
OUTN	bit_out	Non-divided pulse output
COUNT	read	Internal counter value

Which output do pulses go to

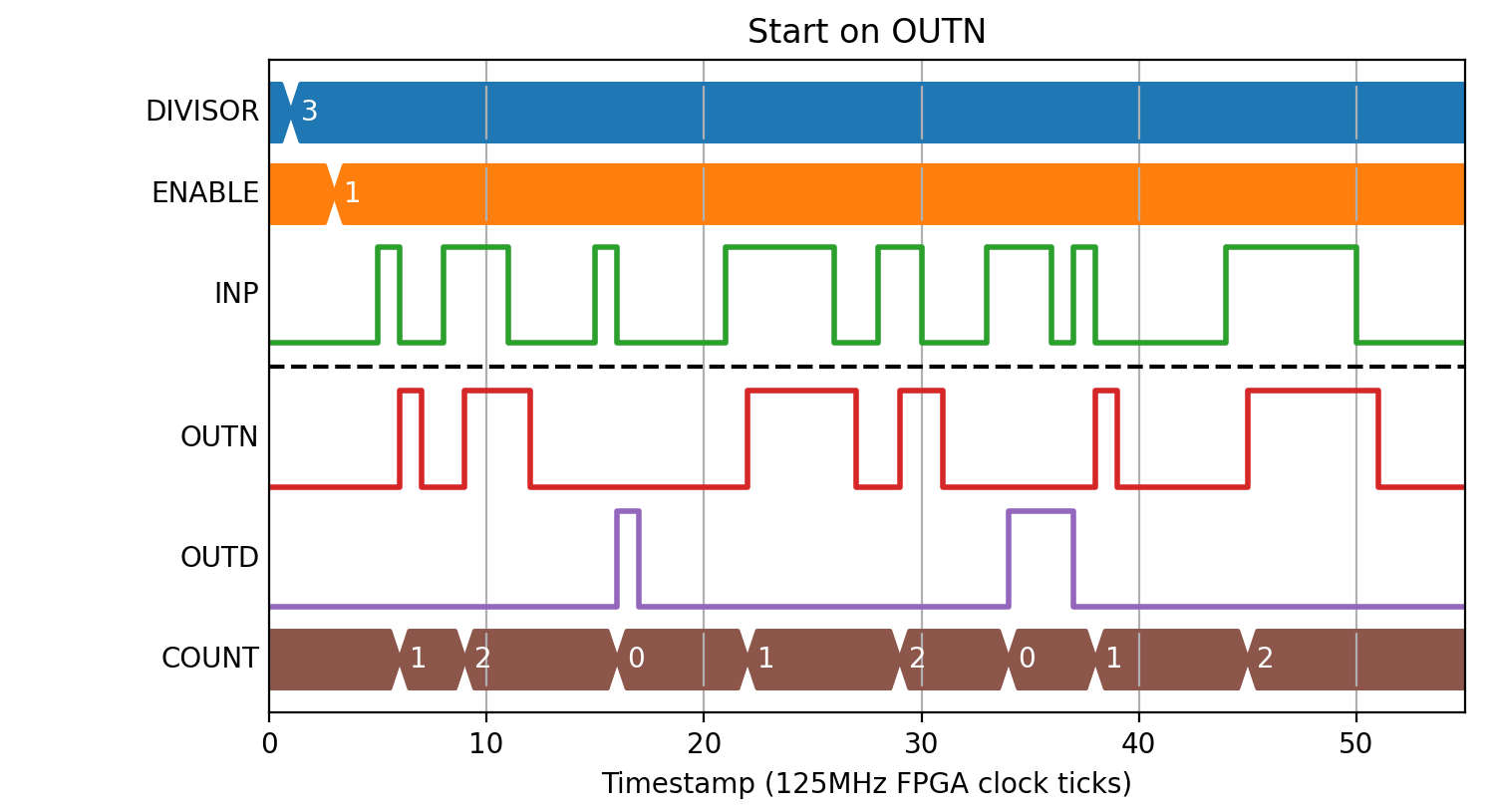

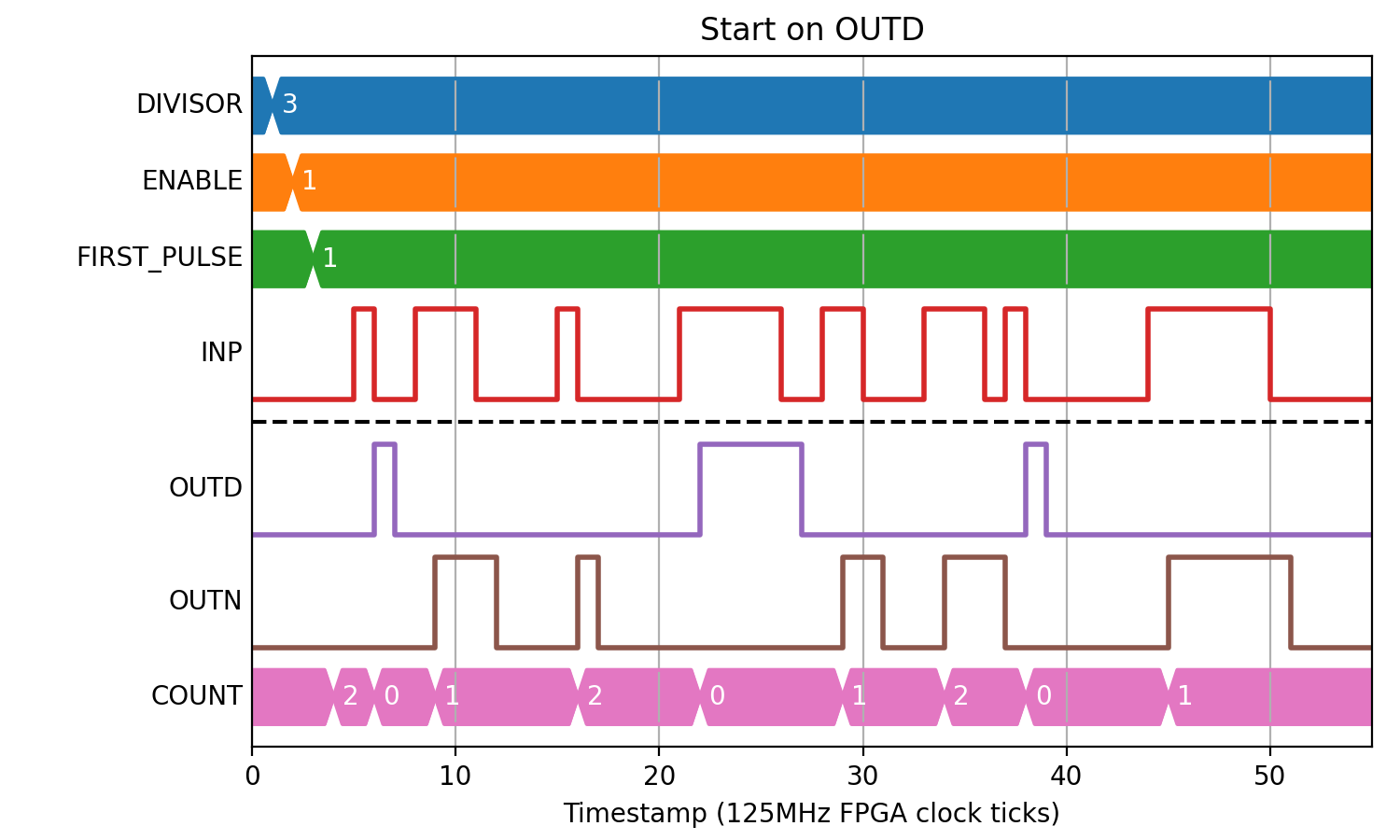

With a DIVISOR of 3, the block will send 1 of 3 INP pulses to OUTD and 2 of 3 INP pulses to OUTN. The following two examples illustrate how the FIRST_PULSE parameter controls the initial value of OUT, which controls whether OUTD or OUTN gets the next pulse.

(Source code, png, hires.png, pdf)

(Source code, png, hires.png, pdf)

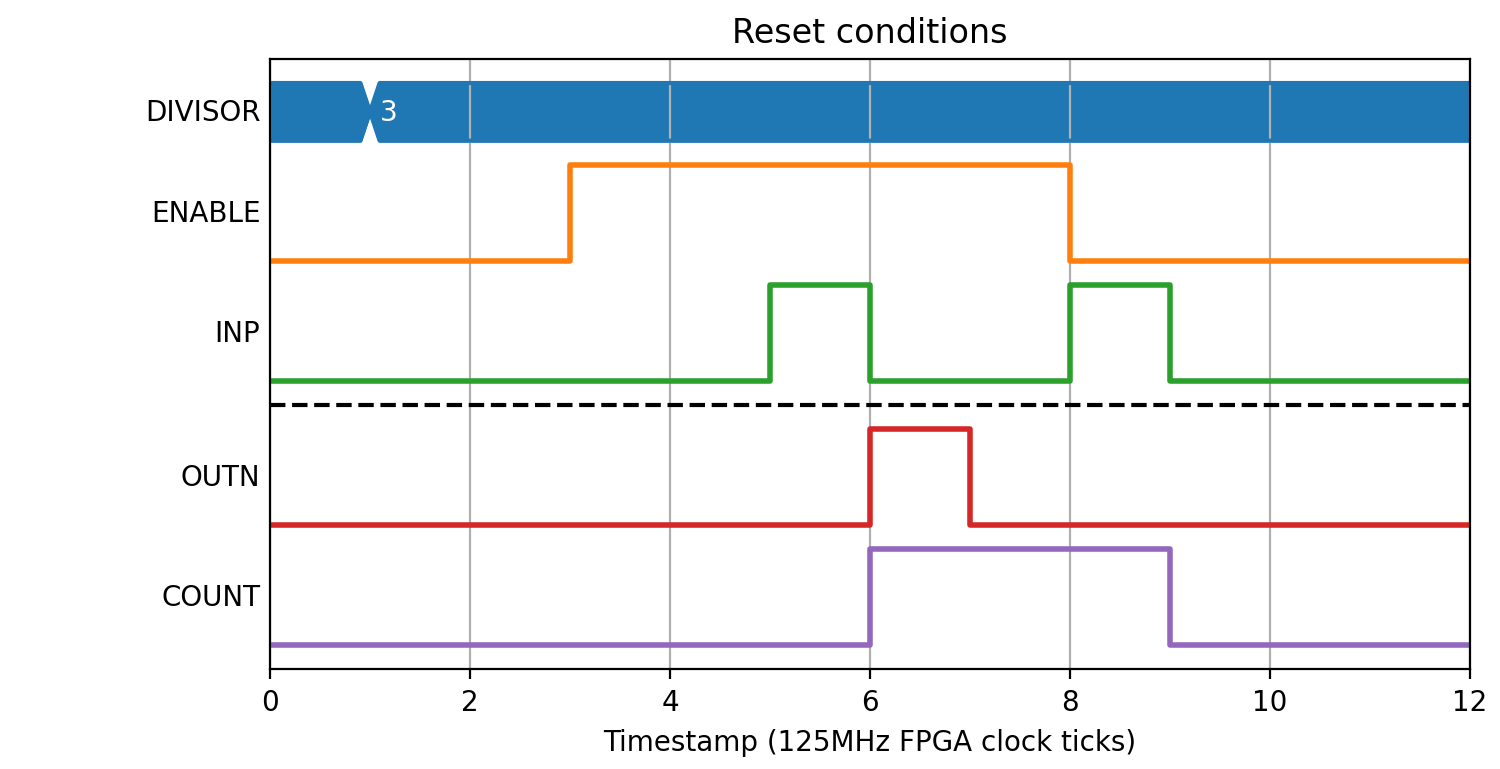

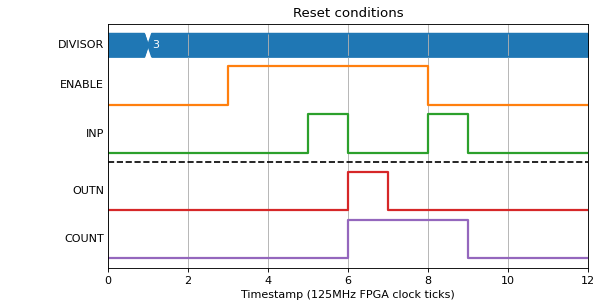

Reset conditions

If an ENABLE falling edge is received at the same time as an INP rising edge, the input signal is ignored and the block reset.

(Source code, png, hires.png, pdf)
